MORPHOLOGICAL DEVELOPMENT AND ALLOMETRIC GROWTH PATTERN OF KONOSIRUS PUNCTATUS AT LARVAE AND JUVENILE STAGES
-
摘要: 运用光学显微镜技术和实验生态学方法, 对斑鰶(Konosirus punctatus)早期形态发育观察、异速生长模式及其生态学意义进行了研究。结果表明: 在水温(21.5±0.5)℃下, 初孵仔鱼全长(3.18±0.52) mm, 斑鰶仔鱼期从孵化出膜到43日龄棱鳞开始出现前, 稚鱼期从44日龄棱鳞出现到55日龄全身覆满鳞片。斑鰶的形态变化和器官分化主要发生在仔鱼期。斑鰶的吻长、躯干长、肠道长、胸鳍长、腹鳍长等重要形态学指标均存在异速生长现象, 其生长拐点依次为 42日龄(TL: 26.41 mm)、24日龄(TL: 15.57 mm)、31日龄(TL: 21.41 mm)、41日龄(TL: 25.47 mm)、42日龄(TL: 26.41 mm)。相对于全长、吻长和胸鳍长在拐点前后由正异速生长变为等速生长, 腹鳍长由正异速生长转为负异速生长, 这为呼吸、摄食和成功逃避捕食者提供有利条件; 而肠道长由负异速生长变为等速生长, 这可能与斑鰶的食性转化有关。综上所述, 为适应复杂多变的生存环境, 斑鰶在早期发育阶段优先发育对生长生存起关键作用的器官, 这对提高仔、稚鱼的存活率具有重要的生态学意义。研究将为今后进一步人工繁育和苗种培育提供理论依据。Abstract: This study investigated the morphological development and allometric growth pattern in early life cycle of Konosirus punctatus and illustrated their crucial ecological meanings for survival. Results showed that the average total length of larvae fish was (3.18±0.52) mm with water temperature at (21.5±0.5)℃. The morphological development of K. punctatus was divided into larvae stage (0—43 day age, from hatching to keeled scales appearing) and fry stage (44—55 day age, from keeled scales appearing to scales covering the body). Morphological changes and organ diffe-rentiations mainly occurred in the larval stage. Key morphological characteristics including rostrum length, trunk length, intestinal length, pectoral length and pelvic fin length exhibited allometric growth patterns, in which the growth infle-xion point were 42 day age (TL: 25.47 mm), 24 day age (TL: 15.57 mm), 31 day age (TL: 21.41 mm), 41 day age (TL: 25.47 mm), 42 day age (26.41 mm), respectively. The growth rate in rostrum length and pectoral length changed from the positive allometry (before inflexion point) to the same rate (after inflexion point); the growth rate in pelvic fin length changed from the positive allometry to the negative allometry. These variations could enhance the capacities of breathing, feeding and escaping. The growth rate in intestinal length changed from negative allometry to the same rate, which is related to the dietary conversion of K. punctatus. To adapt to the complex environments, key organs involved in growth and survival were preferentially developed at the early stage, which facilitated the survival rate of K. punctatus. All the findings provide a fundamental evidence for artificial breeding and seedling cultivation in the future.
-
Keywords:
- Konosirus punctatus /
- Larvael fish /
- Juvenile fish /
- Morphological development /
- Allometric growth
-
-
![]()

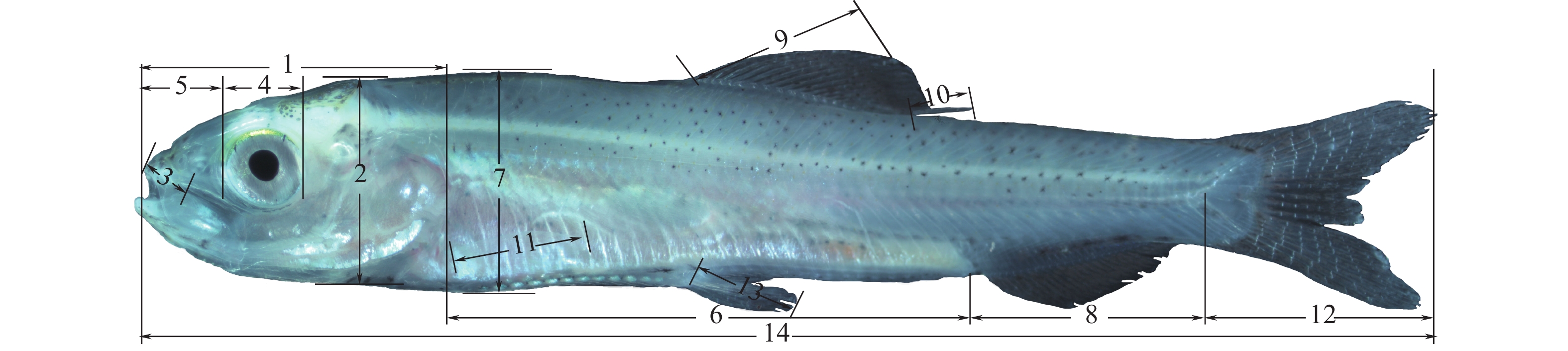

图 1 斑鰶形态特征测量直观图
1. 头长; 2. 头高; 3.上颌长; 4. 眼径; 5. 吻长; 6. 躯干长; 7. 体高; 8. 尾柄长; 9. 背鳍长; 10. 背鳍最后一枚鳍条长; 11. 胸鳍长; 12. 尾鳍; 13. 全长
Figure 1. Illustration measurement for K. punctatus
1. Head length; 2. Head height; 3. Upper jaw length; 4. Eye diameter; 5. Rostrum; 6. Trunk length; 7. Body height; 8. Caudal peduncle length; 9. Dorsal fin length; 10. The last dorsal fin long; 11. Pectoral length; 12. Tail fin length; 13. Total length
![]()

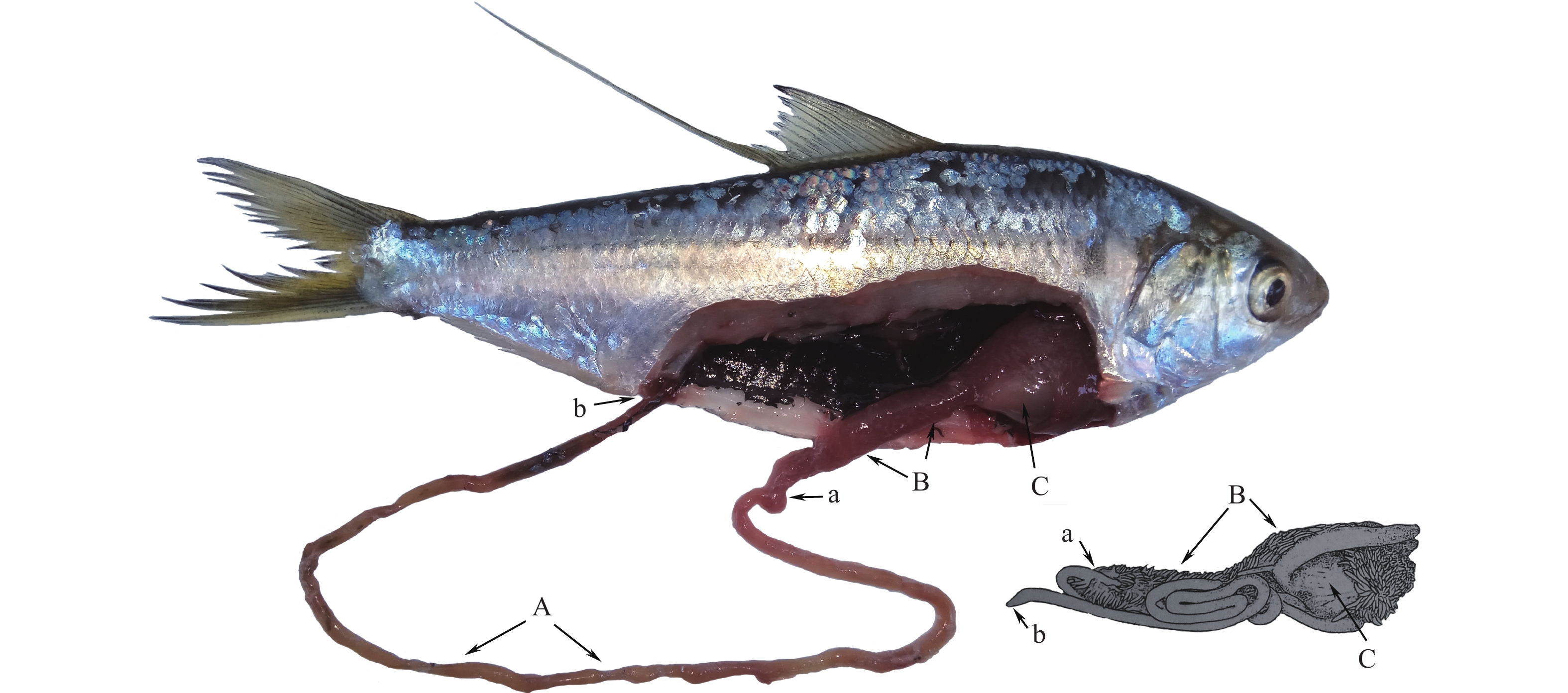

图 2 斑鰶肠道示意图
A. 肠道; B. 幽门盲囊; C. 胃; a. 幽门盲囊与肠道连接点; b. 肛门
Figure 2. Intestine of K. punctatus
A. Intestine; B. Pyloric caeca; C. Stomach; a. The intersection of the Pyloric caeca and the intestine; b. Anus
![]()
图 3 斑鰶仔、稚鱼的生长曲线及投饵策略
Figure 3. Growth curve of larvae and juvenile K. punctatus and feeding method
![]()
图版 I 斑鰶仔、稚鱼形态发育
1. 初孵仔鱼; 2. 1日龄仔鱼; 3. 3日龄仔鱼; 4. 6日龄仔鱼; 5. 9日龄仔鱼; 6. 14日龄仔鱼; 7. 17日龄仔鱼; 8. 19日龄仔鱼; 9. 23日龄仔鱼; 10. 39日龄仔鱼; 11. 44日龄稚鱼; 12. 55日龄稚鱼。图1—11标尺为500 μm; 图12标尺为5 mm
图版 I. Morphological development on larvae and juveniles of K. punctatus
1. Newly hatched larva; 2. 1-day old larva; 3. 3-day old larva; 4. 6-day old larva; 5. 9-day old larva; 6. 14-day old larva; 7. 17-day old larva; 8. 19-day old larva; 9. 23-day old larva; 10. 39-day old larva; 11. 44-day old juvenile; 12. 55-day old juvenile. Bar=500 μm for figure 1—11; Bar=5 mm for figure 12
![]()
图版 II 斑鰶仔、稚鱼局部特征
1. 初孵仔鱼的卵黄囊; 2. 3日龄仔鱼的头部; 3. 6日龄仔鱼的消化道; 4. 9日龄仔鱼的头部; 5. 14日龄仔鱼的消化道; 6. 17日龄仔鱼的尾部; 7. 23日龄仔鱼的头部; 8. 39日龄仔鱼的躯干; 9. 44日龄稚鱼的腹部; OB: 油球; H: 心脏; M: 口; I: 肠道; F: 肠壁褶皱; R: 轮虫; G: 鳃丝; FS: 丰年虫; DF: 背鳍; Hy: 尾下骨; CV: 尾椎骨; SB: 鱼鳔; AS: 棱鳞; 图中标尺500 μm
图版 II. Local character on larvae and juveniles of K. punctatus
1. The yolk sac of the newly hatched larva; 2. Head of 3-day old larva; 3. Intestine of 6-day old larva; 4. Head of 9-day old larva; 5. Intestine of 14-day old larva; 6. Caudal fin of 17-day old larva; 7. Head of 23-day old larva; 8. Trunk of 39-day old larva; 9. Abdomen of 44-day old juvenile. OB: oil ball; H: heart; M: mouth; I: Intestine; F: Intestinal wall fold; R: rotifer; G: gill; FS: fairy shrimp; DF: dorsal fin; Hy: hypural; CV: caudal vertebra; SB: swim bladder; AS: abdominal scale; Bar=500 μm
![]()
图 4 斑鰶仔、稚鱼头部各器官异速生长曲线
Figure 4. Allometric growth curve of head organs in the larval and juvenile K. punctatus
![]()
图 5 斑鰶仔、稚鱼身体各器官异速生长曲线
Figure 5. Allometric growth curve of body sections of larval and juvenile K. punctatus
![]()
图 6 斑鰶仔、稚鱼游泳器官异速生长曲线
Figure 6. Allometric growth curve of swimming functional organs of larval and juvenile K. punctatus
表 1 斑鰶全长与日龄的模型分析与参数估计
Table 1 The summary and parameters between total length and age in days of K. punctatus
模型Model 模型分析Model summary 参数估计Parameter estimate R2 F df1 df2 Sig. Constant b1 b2 b3 线性模型Linear 0.974 3081.99 1 251 0.000 1.067 0.684 对数曲线模型Logarithmic 0.740 230.184 1 251 0.000 –10.191 10.380 反函数曲线模型Inverse 0.277 31.048 1 251 0.000 23.111 –35.594 二次曲线模型Quadratic 0.993 5960.771 2 250 0.000 3.915 0.315 0.006 三次曲线模型Cubic 0.995 4924.753 3 249 0.000 2.860 0.559 –0.004 0 复合曲线模型Compound 0.962 2072.284 1 251 0.000 4.873 1.041 幂函数模型Power 0.920 930.665 1 251 0.000 2.042 0.687 S曲线模型S curve model 0.465 70.454 1 251 0.000 2.967 –2.736 增长曲线模型Growth 0.962 2072.284 1 251 0.000 1.584 0.040 指数曲线模型Exponential 0.962 2072.284 1 251 0.000 4.873 0.040 逻辑斯蒂曲线模型Logistic 0.986 5540.437 1 251 0.000 0.219 0.943
下载: 导出CSV
-
[1] Niklas K J. Plant Allometry: The Scaling of Plant Form and Process [M]. Chicago: University of Chicago Press. 1994, 274—290
[2] 王雨福, 肖志忠, 刘清华, 等. 斑石鲷早期发育的异速生长模式. 海洋科学, 2016, 40(5): 43—48 doi: 10.11759//hykx20141216005 Wang Y F, Xiao Z Z, Liu Q H, et al. Allometric growth pattern during early ontogeny of spotted knifejaw (Oplegnathus punctatus) [J]. Marine Sciences, 2016, 40(5): 43—48 doi: 10.11759//hykx20141216005
[3] 雷霁霖. 中国海水养殖大产业架构的战略思考. 中国水产科学, 2010, 17(3): 600—609 Lei Q L. Strategy consideration for industry construction of Chinese marine culture [J]. Journal of Fishery Science of China, 2010, 17(3): 600—609
[4] 丁福红, 毛守康, 雷霁霖, 等. 我国植物食性海水鱼类养殖发展前景. 海洋科学, 2014, 38(11): 131—137 doi: 10.11759/hykx20140424001 Ding F H, Mao S K, Lei Q L, et al. Prospect of herbivorous fish in marine aquaculture of China [J]. Marine Sciences, 2014, 38(11): 131—137 doi: 10.11759/hykx20140424001
[5] 金彬明, 张其永. 福建省东山岛西埔湾港养斑鰶的繁殖生物学. 水产学报, 1993, 17(2): 126—136 Jin B M, Zhang Q Y. The reproductive biology of gizzard shad Clupanodon punctatus in xipu bay [J]. Journal of Fisheries of China, 1993, 17(2): 126—136
[6] 肖月娟, 李润丰, 郑立红. 斑鰶鱼肉蛋白质氨基酸组成分析及评价. 营养学报, 2011, 33(4): 413—415 Xiao Y J, Li R F, Zheng L H. Analysis and evaluation of protein and amino acids composition of fish meat for Clupanodom punchtatus[J]. Acta Nutrimenta Sinica, 2011, 33(4): 413—415
[7] 郭学武, 唐启升, 孙耀, 等. 斑鰶的摄食与生态转换效率. 海洋水产研究, 1999, 20(2): 17—25 Guo X W, Tang Q S, Sun Y, et al. The consumption and ecological conversion efficiency of dotted gizzard shad (Clupanodon punctatus) [J]. Marine Fisheries Research, 1999, 20(2): 17—25
[8] 吕末晓. 鮻、斑鰶幼鱼食物组成及其与环境浮游植物的关系研究. 硕士学位论文, 上海海洋大学, 上海. 2016 Lü M X. Study on the diet composition of juvenile of Liza haematocheila and Konosirus punctatus and itsrelationship with ambient phytoplankton [D]. Shanghai Ocean University, Shanghai. 2016
[9] 陈大刚. 黄渤海渔业生态学. 北京: 海洋出版社. 1991, 179—183 Chen D G. Fishery ecology in the Yellow Sea and Bohai Sea [M]. Beijing: Ocean Press. 1991, 179—183
[10] 李渊, 张丽艳, 王良明, 等. 台湾海峡斑鰶群体遗传学研究. 应用海洋学学报, 2016, 35(4): 522—528 doi: 10.3969/J.ISSN.2095-4972.2016.04.009 Li Y, Zhang L Y, Wang L M, et al. Population genetics of Konosirus punctatus in Taiwan Strait [J]. Journal of Applied Oceanography, 2016, 35(4): 522—528 doi: 10.3969/J.ISSN.2095-4972.2016.04.009
[11] 肖月娟, 李润丰, 郑立红, 等. 斑鰶鱼蛋白控制酶解及其酶解物抗氧化活性研究. 中国食品学报, 2010, 10(5): 91—97 doi: 10.3969/j.issn.1009-7848.2010.05.014 Xiao Y J, Li R F, Zheng L H, et al. Studies on controlled enzymolysis of Clupanodom punchtatus protein and antioxidant activity of its hydrolysates [J]. Journal of Chinese Institute of Food Science and Technology, 2010, 10(5): 91—97 doi: 10.3969/j.issn.1009-7848.2010.05.014
[12] Yamada U, Tokimura M, Horikawa H, et al. Fishes and fisheries of the East China and Yellow Seas [M]. Kanagawa: Tokai University Press. 2007, 206-211
[13] Katsumi M, Yukio N. On the spawning season and spawning ground of the Japanese gizzard shad konosirus punctatus in Lake Hamana [J]. Bulletin of the Japanese of Scientific Fisheries, 1974, 40(1): 35—42 doi: 10.2331/suisan.40.35
[14] 高小强, 洪磊, 刘志峰, 等. 美洲鲥仔稚鱼异速生长模式研究. 水生生物学报, 2015, 39(3): 638—644 doi: 10.7541/2015.85 Gao X Q, Hong L, Liu Z F, et al. The study of allometric growth pattern of American shad larvae and juvenile (Alosa sapidissima) [J]. Acta Hydrobiologica Sinica, 2015, 39(3): 638—644 doi: 10.7541/2015.85
[15] 张呈祥, 徐钢春, 徐跑, 等. 美洲鲥仔、稚、幼鱼的形态发育与生长特征. 中国水产科学, 2010, 17(6): 1227—1235 Zhang C X, Xu G C, Xu P, et al. Morphological development andgrowth of American shad (Alosa sapidissima) at larvae, fry and juvenile stages [J]. Journal of Fishery Sciences of China, 2010, 17(6): 1227—1235
[16] 陈真然, 张孝威. 斑鰶卵子和仔、稚、幼鱼的形态特征. 海洋与湖沼, 1965, 7(3): 205—219 Chen Z R, Zhang X W. A description of the morphological characters of the eggs, larvae and young of Clupanodon punctatus [J]. Oceanologia et Limnologia Sinica, 1965, 7(3): 205—219
[17] Fuiman L A. Growth gradients in fish larvae [J]. Journal of Fish Biology, 1983, 23(1): 117—123 doi: 10.1111/jfb.1983.23.issue-1
[18] Snik G M J, Osse J W M. Larval growth patterns in Cyprinus carpio and Clarias gariepinus with attention to the finfold [J]. Journal of Fish Biology, 1997, 50(6): 1339—1352
[19] 杨培民, 骆小年, 金广海, 等. 鸭绿江唇䱻仔、稚鱼形态发育与早期生长. 水生生物学报, 2014, 38(1): 1—9 Yang P M, Luo X N, Jin G H, et al. Morphological development and early growth on larvae and juveniles of Hemibarbus labeo in Yalü River [J]. Acta Hydrobiologica Sinica, 2014, 38(1): 1—9
[20] 殷名称. 鱼类早期生活史研究与其进展. 水产学报, 1991, 15(4): 348—358 Yin M C. Advance and studies of early life history of fish [J]. Journal of Fisheries of China, 1991, 15(4): 348—358
[21] Gluckmann I, Huriaux F, Focant B, et al. Postembryonic development of the cephalic skeleton in Dicentrarchus labrax (Pisces, Perciformes, Serranidae) [J]. Bulletin of Marine Science, 1999, 65(1): 11—36
[22] Choo C K, Liew H C. Morphological development and allometric growth patterns in the juvenile seahorse Hippocampus kuda Bleeker [J]. Journal of Fish Biology, 2006, 69(2): 426—445 doi: 10.1111/jfb.2006.69.issue-2
[23] 马境, 章龙珍, 庄平, 等. 施氏鲟仔鱼发育及异速生长模型. 应用生态学报, 2007, 18(12): 2875—2882 Ma J, Zhang L Z, Zhuang P, et al. Development and allometric growth patters of larval Acipenser schrenckii [J]. Chinese Journal of Applied Ecology, 2007, 18(12): 2875—2882
[24] 邱顺林, 刘琳, 王鸿泰. 鲥鱼的早期发育. 水产学报, 1987, 11(1): 45—52 Qiu S L, Liu L, Wang H T. Observation on the early development of reeves shad [J]. Journal of Fisheries of China, 1987, 11(1): 45—52
[25] 杨东莱, 吴光宗. 太平洋鲱鱼的胚胎发育及初孵仔鱼的形态. 水产学报, 1982, 6(1): 25—31 Yang D L, Wu G Z. Observations on the embryonic development and pre-larvae of pacific herring [J]. Journal of Fisheries of China, 1982, 6(1): 25—31
[26] 陈大刚, 刘国祥, 董广君, 等. 斑鰶人工繁殖与鱼苗培育的初步试验. 动物学报, 1977, 23(1): 22—29 Chen D G, Liu G X, Dong G J, et al. Preliminary experiments on the artificial breeding and fry rearing of gizzardshads Clupanodon punctatus (Temminck et Schlegel, 1846) [J]. Current Zoology, 1977, 23(1): 22—29
[27] 门强, 雷霁霖, 武云飞. 鳔器官的发育对人工培育鱼苗的影响. 海洋水产研究, 2003, 24(1): 80—84 Men Q, Lei J L, Wu Y F. Influence of abnormal development of swimbladder on the larvae rearing of marine fish [J]. Marine Fishery Research, 2003, 24(1): 80—84
[28] 孔立波, 孙继仁, 杨东莱, 等. 渤海湾青鳞鱼和斑鰶两种鱼卵及仔鱼的比较研究. 海洋与湖沼, 1996, 27(2): 169—178 doi: 10.3321/j.issn:0029-814X.1996.02.009 Kong L B, Sun J R, Yang D L, et al. Comparison research on eggs and larvae of Harengula zunasi bleeker and Clupanodon punctatus in Bohai bay [J]. Oceanologia et Limnologia Sinica, 1996, 27(2): 169—178 doi: 10.3321/j.issn:0029-814X.1996.02.009
[29] Peña R, Dumas S. Development and allometric growth patterns during early larval stages of the spotted sand bass Paralabrax maculatofasciatus (Percoidei: Serranidae) [J]. Scientia Marina, 2009, 73(1): 183—189
[30] 何滔, 肖志忠, 刘清华, 等. 条石鲷早期发育阶段的生长模式. 水产学报, 2012, 36(8): 1242—1248 He T, Xiao Z Z, Liu Q H, et al. Allometric growth in rock bream larvae (Oplegnathus fasciatus Temminck et Schlegel 1844) [J]. Journal of Fisheries of China, 2012, 36(8): 1242—1248
[31] Gisbert E. Early development and allometric growth patterns in Siberian sturgeon and their ecological significance [J]. Journal of Fish Biology, 1999, 54(4): 852—862 doi: 10.1111/jfb.1999.54.issue-4
[32] 李军, 韩英伦, 徐磊, 等. 日本七鳃鳗胚胎发育及卵黄囊期仔鱼的异速生长. 水生生物学报, 2017, 41(6): 1207—1217 doi: 10.7541/2017.150 Li J, Han Y L, Xu L, et al. Embryological stages and allometric growth during yolksac larvae of Lampetra japonica (Martens) [J]. Acta Hydrobiologica Sinica, 2017, 41(6): 1207—1217 doi: 10.7541/2017.150
[33] 庄平, 宋超, 章龙珍, 等. 全人工繁殖西伯利亚鲟仔、稚鱼发育的异速生长. 生态学杂志, 2009, 28(4): 681—687 Zhuang P, Song C, Zhang L Z, et al. Allometric growth of artificial bred Siberian sturgeon Acipenser baeri larvae and juveniles [J]. Chinese Journal of Ecology, 2009, 28(4): 681—687
[34] Osse J W M, Boogaart J G M V, Snik G M J V, et al. Priorities during early growth of fish larvae [J]. Aquaculture, 1997, 155(14): 249—258
[35] 席丹, 张秀梅, 吕红健, 等. 许氏平鲉早期异速生长模式的研究. 中国海洋大学学报(自然科学版), 2014, 44(12): 28—34 Xi D, Zhang X M, Lü H J, et al. Studies on early allometric growth pattern of black rockfish Sebastes schlegelii [J]. Periodical of Ocean University of China (
Natural Science ) , 2014, 44(12): 28—34 [36] 席丹. 许氏平鲉(Sebastes schlegelii)早期发育生长模式与自残行为研究. 硕士学位论文, 中国海洋大学, 青岛. 2014 Xi D. Growth pattern and cannibalism in black rockfish (Sebastes schlegelii) during early development stage [D]. Ocean University of China, Qingdao. 2014
[37] 程大川, 马振华, 江世贵. 红鳍笛鲷仔、稚鱼异速生长. 水生生物学报, 2017, 41(1): 206—213 doi: 10.7541/2017.26 Cheng D C, Ma Z H, Jiang S G, et al. Allometric growth in larval and juvenile crimson snapper Lutjanus erythopterus [J]. Acta Hydrobiologica Sinica, 2017, 41(1): 206—213 doi: 10.7541/2017.26
[38] 单秀娟, 窦硕增. 鮸鱼(Miichthys miiuy)仔、稚鱼发育生长方式及其生态学意义. 海洋与湖沼, 2009, 40(6): 714—719 doi: 10.3321/j.issn:0029-814X.2009.06.007 Shan X J, Dou S Z. Allometric growth of croaker Miichthys miiuy larvae and juveniles and its ecological implication [J]. Oceanologia et Limnologia Sinica, 2009, 40(6): 714—719 doi: 10.3321/j.issn:0029-814X.2009.06.007
[39] 张臣, 曾燏, 彭艳, 等. 嘉陵江下游蛇肠道形态结构及其异速生长模式. 水产学报, 2018, 42(4): 503—512 Zhang C, Zeng Y, Peng Y, et al. Morphological structure and allometric growth pattern of Saurogobio dabryi intestine in the lower reaches of Jialing River [J]. Journal of Fisheries of China, 2018, 42(4): 503—512
[40] 高亚辉, 傅万里, 徐境波, 等. 真鲷早期仔鱼食性转变研究. 台湾海峡, 2000, 19(3): 344—349 doi: 10.3969/j.issn.1000-8160.2000.03.014 Gao Y H, Fu W L, Xu J B, et al. Feeding switching of Pagrosomus major earlier larvae [J]. Journal of Oceanography in Taiwan Strait, 2000, 19(3): 344—349 doi: 10.3969/j.issn.1000-8160.2000.03.014
[41] 宋洪建, 刘伟, 王继隆, 等. 大麻哈鱼卵黄囊期仔鱼异速生长及其生态学意义. 水生生物学报, 2013, 37(2): 329—335 doi: 10.7541/2013.23 Song H J, Liu W, Wang J L, et al. Allometric growth during yolk-sac larvae of chum salmon (Oncorhynchus keta Walabaum) and consequent ecological significance [J]. Acta Hydrobiological Sinica, 2013, 37(2): 329—335 doi: 10.7541/2013.23
